Designed for increased profitability, our impact crushers combine cutting-edge impact crushing technology with rugged design. It optimizes the rotor and crushing chamber to achieve higher crushing rates with fewer crushing stages.
Impact crushers usually form a complete crushing system with jaw crushers and are suitable for railways, highways, airports, cement, chemicals, construction and industries that require cubic-shaped rocks.
Get the Latest PriceThe impact crusher can perform secondary and tertiary crushing of materials with a compressive strength not exceeding 350 MPa. It is suitable for limestone, granite, basalt, cobblestone, gold ore, chrome ore, iron ore, gypsum, glass, cement, concrete, asphalt, slag, construction waste, etc.
| Model | Specifications （mm） | Feed Opening （mm） | Max.Feeding Size （mm） | Capacity （t/h） | Power （kw） | Dimensions（L×W×H） （mm） |
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 2330×1660×2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 2370×1700×2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 2680×2160×2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 80-180 | 6P 132 | 2650×2460×2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 100-280 | 6P 200 | 3180×2720×3120 |
| PF-1320 | Φ1300×2000 | 993×2000 | 500 | 140-380 | 6P 250 | 3220×3100×3120 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 200-550 | 4P 315-400 | 3959×3564×3330 |
| PF-1820 | Φ1800×2000 | 1260×2040 | 800 | 300-800 | 6P 630-710 | 4400×3866×4009 |

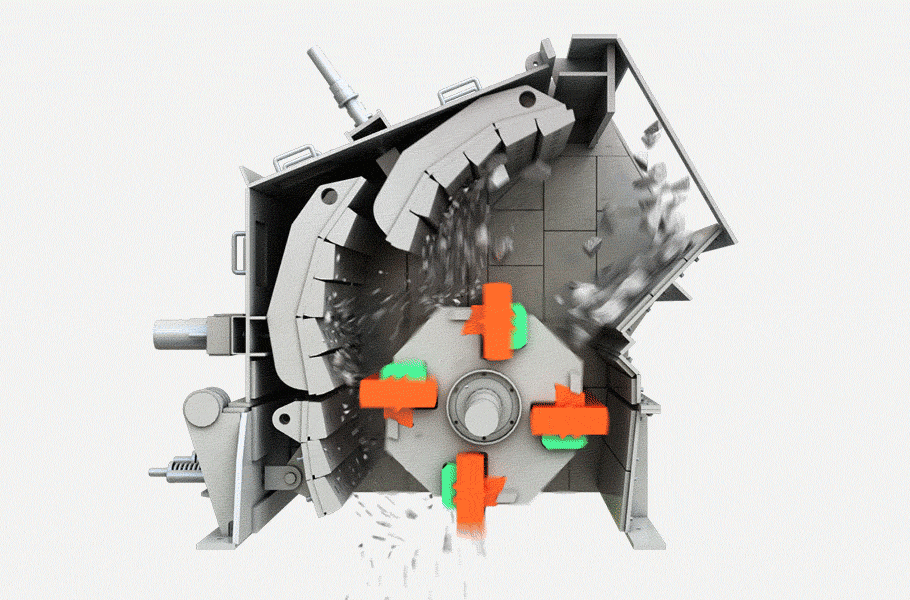

Impact crushers use energy from impacts to crush materials. A high-speed rotor driven by an electric motor crushes material entering the cavity through a feed port. The crushed material undergoes secondary crushing by striking the impact plate at high speed until it reaches the desired particle size and is discharged from the outlet.
With a large feed inlet and high crushing chamber, it's ideal for processing large hard materials with low powder.
Features an oversized, sturdy rotor and cavity, optimizing rotation speed and power for increased output and crushing ratio. Suited for coarse, medium, fine crushing, and recycling
Equipped with wear-resistant high-chromium blow hammer and a unique locking system, along with a high-quality welded structure for enhanced performance and lifespan. Modular design reduces part consumption, extends replacement cycle, and saves costs.
