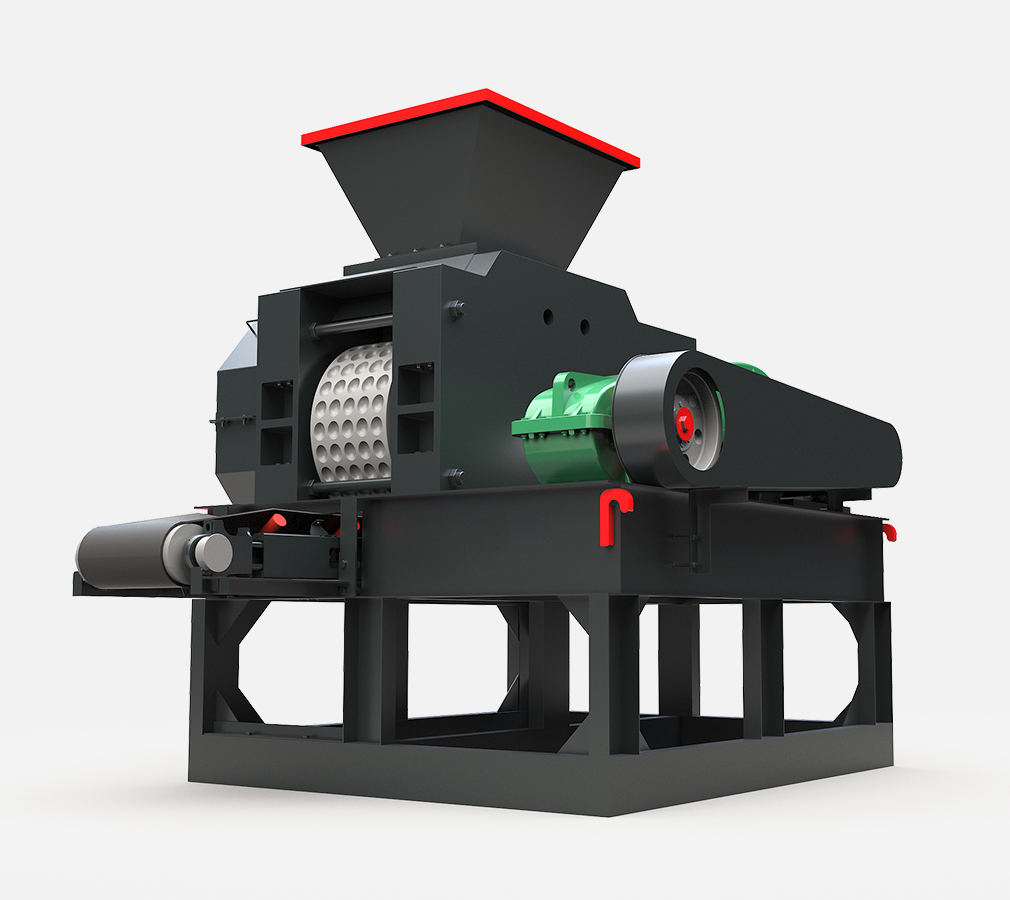

The briquetting machine can compress powders with a size less than 8 mm and a humidity less than 10% into spherical shapes. It is suitable for coal powder, charcoal powder, metal ore powder, and non-metallic mineral powder.
The briquetted balls are small in size and easy to burn, smelt, store and transport. For the final formed balls, we support customizing different shapes and sizes, such as round, square, pillow, oval, or other shapes.
Get the Latest PriceCoal powder, charcoal powder, coal slurry, rick husks, mill scale, steel slag, coal dust, sludge, coal fines, fly ash, coconut shells, asphalt powder, iron powder, manganese ore fines, ore tailings, etc.
| Model | Roll diameter （mm） |
Roll width （mm） |
Total pressure （t） |
Main motor power （kw） |
Output （t/h） |
Weight （t） |
| GY520-150 | 520 | 196 | 150 | 55 | 2.2-3.5 | 13 |
| GY650-220 | 650 | 200 | 220 | 110 | 4-6.5 | 19.2 |
| GY750-300 | 750 | 280 | 300 | 185 | 6-8.5 | 34 |
| GY1000-350 | 1000 | 440 | 350 | 250 | 10-15 | 50.8 |
| GY1000-450 | 1000 | 504 | 450 | 280 | 14-17 | 58.5 |
| GY1000-500 | 1000 | 504 | 500 | 315 | 15-20 | 58.5 |
| GYS1000-500 | 1000 | 600 | 500 | 280 | 17-21 | 56.5 |
| GY1000-540 | 1000 | 900 | 540 | 185Kw×2 | 30-35 | 60 |
| GY1200-800 | 1200 | 900 | 800 | 280Kw×2 | 40 | 110 |
| GY1400-1000 | 1400 | 1000 | 1000 | 400Kw×2 | 50 | 156 |

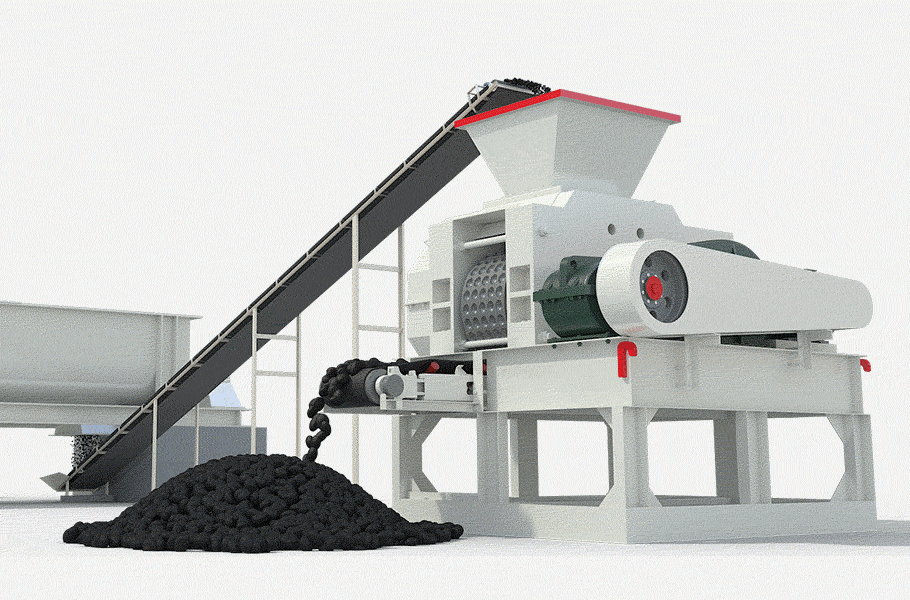

The briquetting machine powers two pressure rollers, rotating them in opposite directions via a reducer. Material enters the mold naturally on the rollers, with pressure increasing as they rotate. At the contact point of the rollers, pressure peaks, pressing the material into the finished briquettes.
The briquettes formed have high pelletizing rate, high density, toughness and not easily broken.
The pressure rollers are diverse so that customers can adjust the shape and size of the briquettes according to the actual production needs.
All wearing parts (especially the pressure roller) of the briquetting machine are welded with wear-resistant alloy to improve performance and life, and are easy to replace.
We collaborate with clients globally to deliver top-notch mineral processing equipment and tailored solutions, aiming to optimize plant efficiency and reduce operating costs. Additionally, we prioritize ESG (Environmental, Social, and Governance) initiatives, actively advocating for the sustainable advancement of eco-friendly mining and recycling sectors.
Based on high quality and perfect after-sales service, our products have been exported to more than 120 countries and regions. FTM Machinery has become the first choice of more than 2,000,000 customers.
